Price range: $27.46 through $2,035.88 exc. VAT

Description

316 WLL bow shackle with E type safety pin with nylok nut

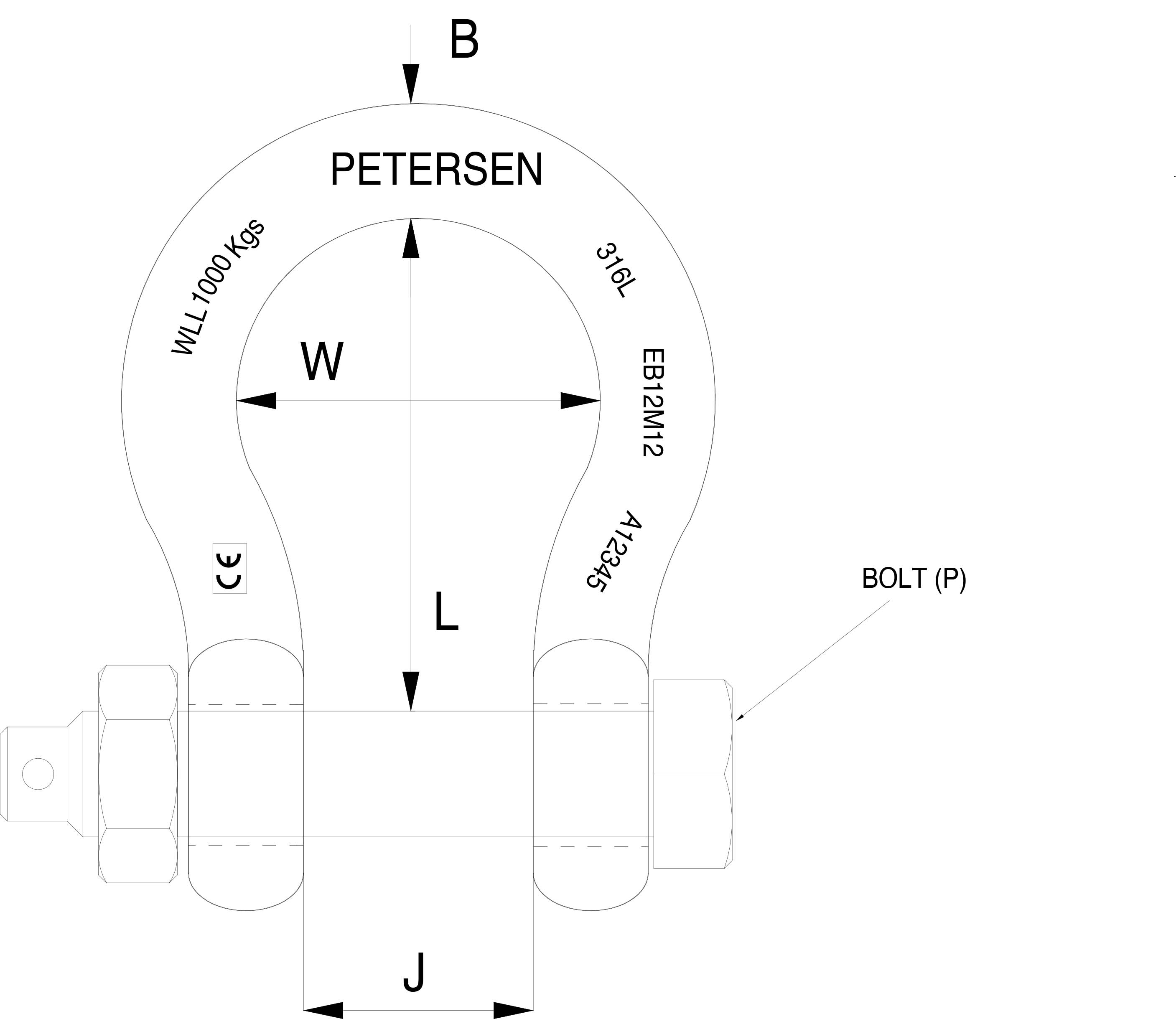

DIMENSIONS & WLL PIN STYLES & PRODUCT NUMBERS NOMINAL WEIGHT (G)
WLL (KG) BOLT SIZE B (MM) J (MM) W (MM) L (MM) E TYPE E TYPE C/W NYLOK
280 M6 6.0 13.0 19.0 28.0 EB6M6 EB6M6-NY 52
400 M8 8.0 16.0 25.0 35.0 EB8M8 EB8M8-NY 81
600 M10 9.5 19.0 28.0 38.0 EB10M10 EB10M10-NY 147
800 M12 11.0 22.0 33.0 46.0 EB11M12 EB11M12-NY 221
1000 M12 12.7 26.0 38.0 52.0 EB12M12 EB12M12-NY 354
1500 M16 14.3 29.0 43.0 60.0 EB14M16 EB14M16-NY 635
2500 M20 16.0 32.0 50.0 68.0 EB16M20 EB16M20-NY 805
3000 M22 19.0 38.0 58.0 76.0 EB19M22 EB19M22-NY 1250
4000 M24 22.0 44.0 66.0 88.0 EB22M24 EB22M24-NY 1820
4500 M27 25.4 50.0 76.0 100.0 EB25M27 EB25M27-NY 2700

PRODUCT FEATURES

  • Manufactured from low carbon stainless steel EN10088 1.4404 (Marine Grade 316L), which
    corresponds to UNS S31603, and 316S11
  • Excellent for lifting applications where a high level of corrosion resistance is required
  • Meets the performance requirements of EN 13889:2003 and US Federal Specification RR-C-271
  • Type IVA (Anchor Shackles) and Type IVB (Chain Shackles), Classes 2 (Screw Pin) and 3 (Bolt, Nut
    and Cotter), Grade A.
  • Manufactured using the latest technology in electrical upset forging
    Factor of Safety 6:1
  • Available with 2 pin types – safety pin with standard nut (E Type) or nylok nut (E Type-NY)
  • Special design of bolt ensures the nut is positioned correctly allowing sufficient room for the cotter
    pin
  • All shackles CE marked and supplied with instruction leaflet on safe use and storage

QUALITY FEATURES

  • Proof load tested to 2 x WLL and certified at our UK manufacturing facility
  • Manufactured in accordance with the Machine Directive 2006/42/EC
  • Inspection certificate BS EN 10204 3.1 provided as standard
  • High-quality finish and excellent polish

TYPICAL APPLICATION

  • General lifting, including in off-shore applications
  • Water utility installations and other corrosive facilities, including chemical
    installations, chlorine plants, etc.
  • Pump chains and pump lifting
  • General lifting and tethering in leisure marine application
