Description

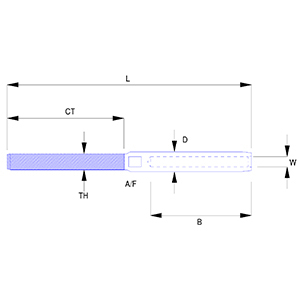

CE Stainless Steel Swage Stud
| PRODUCT CODE |
WIRE (MM) |
THREAD |
D (MM) |
L (MM) |
CT (MM) |
WLL 7X19 / 6X19-IWRC |
WLL 6X36-IWRC |
| SCM6X3R-EN |
3 |
M6 |
6.3 |
97.0 |
47.0 |
70kg |
N/A |
| SCM6X4R-EN |
4 |
M6 |
7.5 |
105.0 |
47.0 |
125kg |
N/A |
| SCM8X4R-EN |
4 |
M8 |
7.5 |
113.0 |
54.0 |
125kg |
N/A |
| SCM8X5R-EN |
5 |
M8 |
9.1 |
122.0 |
54.0 |
200kg |
N/A |
| SCM10X5R-EN |
5 |
M10 |
9.1 |
135.0 |
64.0 |
200kg |
N/A |
| SCM10X6R-EN |
6 |
M10 |
12.5 |
154.0 |
75.0 |
285kg |
300kg |
| SCM12X6R-EN |
6 |
M12 |
12.5 |
170.0 |
90.0 |
285kg |
300kg |
| SCM12X7R-EN |
7 |
M12 |
14.3 |
177.0 |
90.0 |
390kg |
N/A |
| SCM12X8R-EN |
8 |
M12 |
16.0 |
177.0 |
90.0 |
510kg |
545kg |
| SCM16X8R-EN |
8 |
M16 |
16.0 |
201.0 |
100.0 |
510kg |
545kg |
| SCM16X10R-EN |
10 |
M16 |
18.0 |
223.0 |
100.0 |
795kg |
855kg |
| SCM20X12R-EN |
12 |
M20 |
21.4 |
277.0 |
120.0 |
1150kg |
1230kg |
| SCM22X14R-EN |
14 |
M22 |
25.0 |
325.0 |
140.0 |
1515kg |
1675kg |
| SCM27X16R-EN |
16 |
M27 |
28.2 |
371.0 |
160.0 |
2040kg |
2175kg |
Rated for lifting in accordance with EN 13411-8. WLLs stated based on 90% of wire MBL at a 6:1 factor of safety. All terminals permanently etched with CE mark and batch identification number.
