Price range: £5.25 through £678.50 exc. VAT

Description

316 WLL screw pin D shackle with A type pin

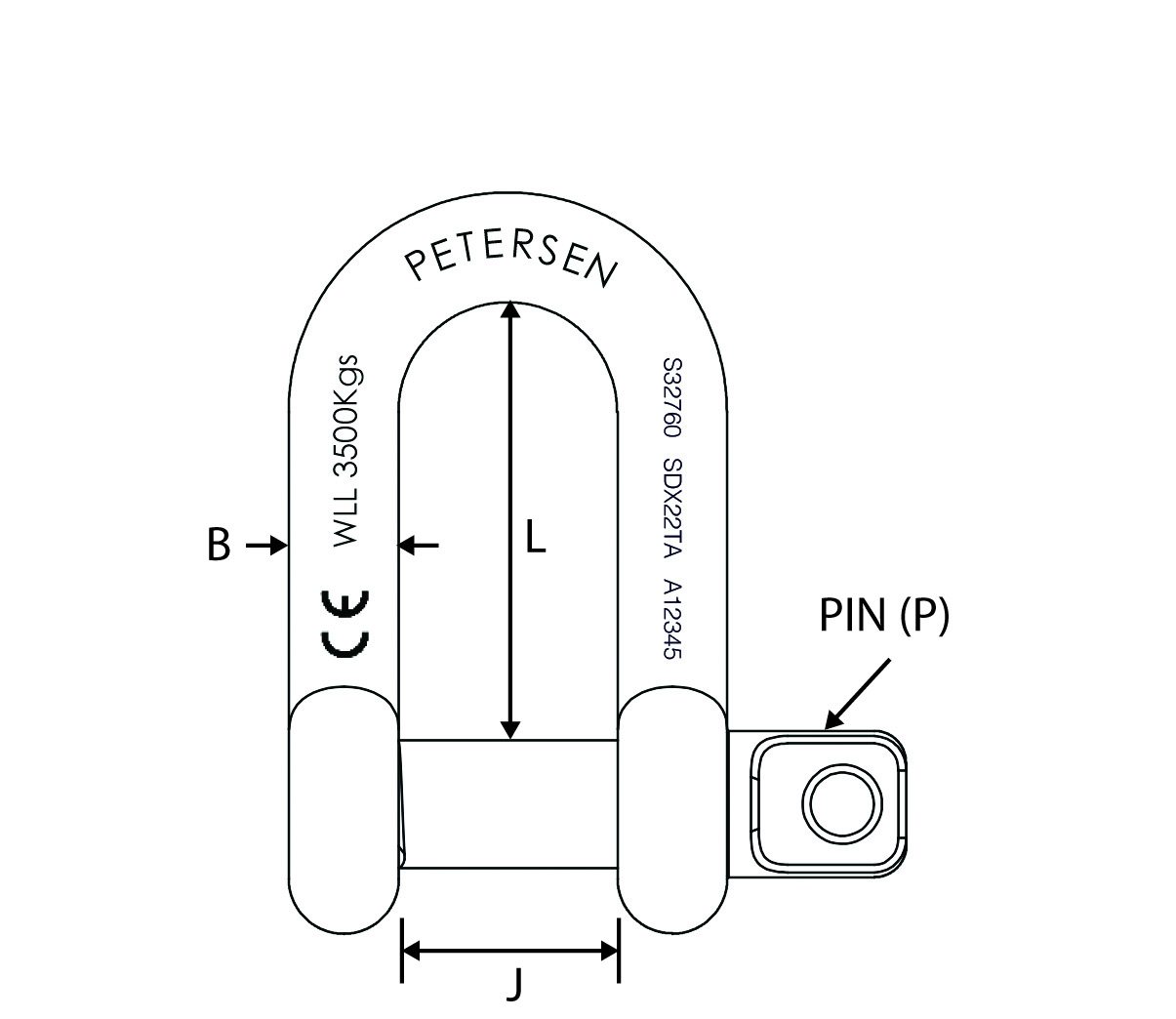

DIMENSIONS & WLL PIN STYLES & PRODUCT NUMBERS NOMINAL WEIGHT (G)
WLL (KG) P (MM) B (MM) J (MM) L (MM) A TYPE B TYPE
130 4 4 8 16 D04TA D04TB 7
200 5 5 10 20 D05TA D05TB 13
325 6 6 13 25 D06TA D06TB 24
500 8 8 16 32 D08TA D08TB 53
800 9.5 9.5 19 38 D10TA D10TB 97
1000 11 11 22 44 D11TA D11TB 152
1250 12.7 12.7 26 52 D12TA D12TB 237
1660 16 14.3 29 58 D16TA D16TB 450
2330 19 16 32 64 D19TA D19TB 585
3500 22.2 19 38 76 D22TA D22TB 1000
4500 25.4 22.2 44 88 D25TA D25TB 1900
5500 28.6 25.4 51 102 D28TA D28TB 2900
6500 31.8 28.6 57 114 D32TA D32TB 3100
7500 34.9 31.8 64 128 D35TA D35TB 4350
9000 38 34.9 70 140 D38TA D38TB 5300
