PRODUCT FEATURES

Manufactured from Stainless Steel EN10088 1.4404 (Marine Grade 316L)
Excellent for lifting applications where a high level of corrosion resistance is required
Factor of Safety 6:1
All sizes are of a bolted construction and can simply be dismantled for replacement of sheaves or general maintenance
All blocks CE marked and supplied with instruction leaflet on safe use and storage

QUALITY FEATURES

Every block is proof load tested to 2 x WLL and certified at our manufacturing facility in the North East of England
All blocks are manufactured in accordance with the Machine Directive 2006/42/EC
Inspection certificate BS EN 10204 3.1 available on request
High quality finish and excellent polish

TYPICAL APPLICATIONS
High towers and lines where weight carried is of prime importance
Double blocks are used in pairs by electricity boards for live line working
General lifting in off-shore application
General lifting purpose

Price range: £12.50 through £889.95 exc. VAT

Description

316 WLL bow shackle with E type safety pin with nylok nut

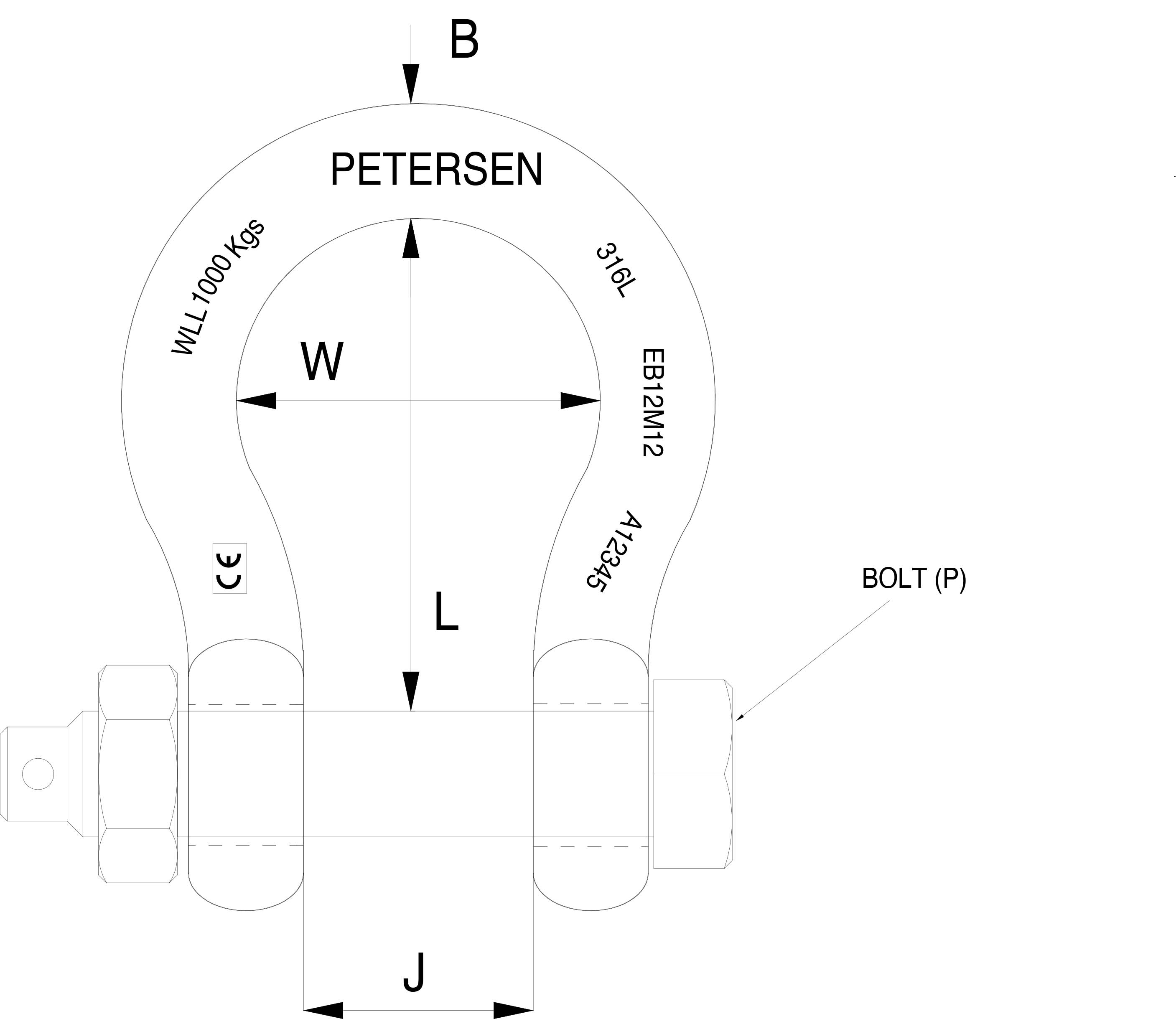

DIMENSIONS & WLL PIN STYLES & PRODUCT NUMBERS NOMINAL WEIGHT (G)
WLL (KG) BOLT SIZE B (MM) J (MM) W (MM) L (MM) E TYPE E TYPE C/W NYLOK
280 M6 6.0 13.0 19.0 28.0 EB6M6 EB6M6-NY 52
400 M8 8.0 16.0 25.0 35.0 EB8M8 EB8M8-NY 81
600 M10 9.5 19.0 28.0 38.0 EB10M10 EB10M10-NY 147
800 M12 11.0 22.0 33.0 46.0 EB11M12 EB11M12-NY 221
1000 M12 12.7 26.0 38.0 52.0 EB12M12 EB12M12-NY 354
1500 M16 14.3 29.0 43.0 60.0 EB14M16 EB14M16-NY 635
2500 M20 16.0 32.0 50.0 68.0 EB16M20 EB16M20-NY 805
3000 M22 19.0 38.0 58.0 76.0 EB19M22 EB19M22-NY 1250
4000 M24 22.0 44.0 66.0 88.0 EB22M24 EB22M24-NY 1820
4500 M27 25.4 50.0 76.0 100.0 EB25M27 EB25M27-NY 2700
